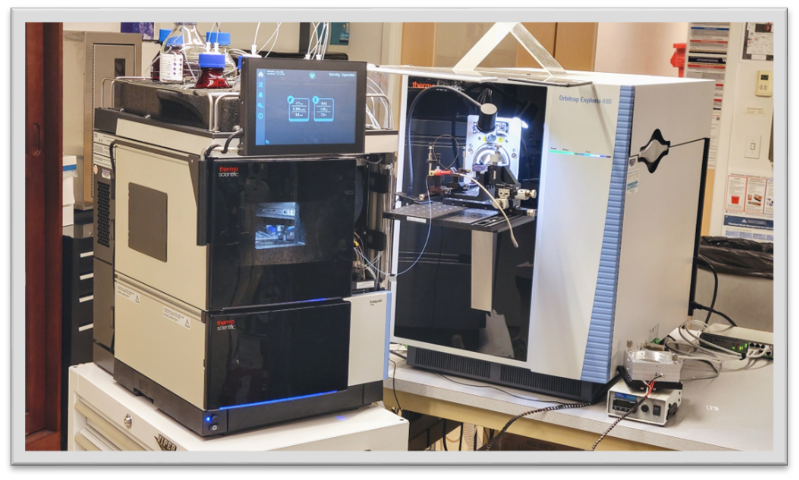

A compact nano-flow UHPLC system

The Vanquish Neo is a UHPLC system for nano-, capillary-, and micro-flow LC-MS with a pressure rating of 1500 bar.

System specifications

Specification Value
System pressure up to 1500 bar (21,750 psi)
Flow range 1 nL/min – 100 µL/min, in 1 nL increments
Recommended flow range 100 nL/min – 100 µL/min
Injection volume range 0.01 – 25 µL
Injection precision, 0.05–0.20 µL ≤ 5.0% RSD
Injection precision, 0.20–0.50 µL ≤ 1.5% RSD
Injection precision, 0.50–2.00 µL ≤ 0.5% RSD
Injection precision, above 2 µL ≤ 0.25% RSD
