Orbitrap Fusion Tribrid MS

The Thermo Scientific Orbitrap Fusion Tribrid mass spectrometer combines quadrupole, Orbitrap, and dual-pressure linear ion trap mass analyzers in one instrument. Precursor selection, fragmentation (CID, HCD, ETD), and detection in either analyzer run in parallel, supporting deep analysis of low-abundance and high-complexity samples.

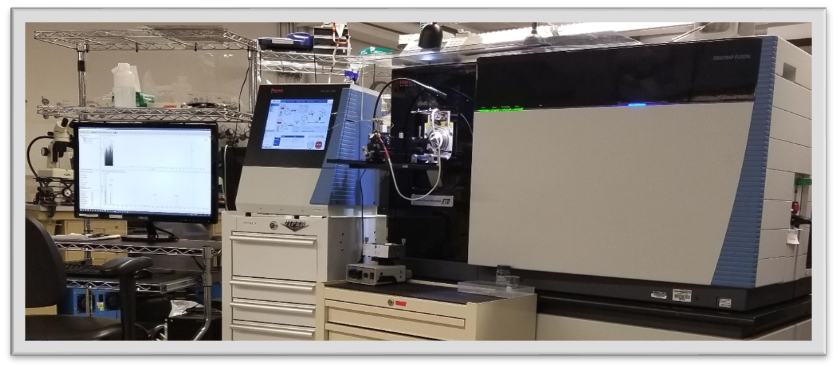

12/5/2013 Fusion Installed

Specifications

Specification Value
MSn scan rate, Orbitrap up to 15 Hz (18 Hz max for OT MS2 with sw v1.1)
MSn scan rate, ion trap up to 20 Hz
Resolution 15,000 – 450,000 FWHM at m/z 200
Mass accuracy < 3 ppm RMS external; < 1 ppm internal calibration

Features

  • CID/HCD/ETD(/EThcD with sw v1.1) detected by the Ion Trap or Orbitrap at any level of MSn for maximum experimental flexibility
  • ETD for fragmentation and internal calibrant
  • S-Lens ion source for increased sensitivity
  • Quadrupole mass filter (1200 amu wide Quadrupole Isolation with improved signal to noise with sw v1.1)
  • Orbitrap mass analyzer
  • Spectral multiplexing for enhanced duty cycle
  • Synchronous Precursor Selection Up to 15 precursors per MS2 scan, for MS3 analysis only

Parallelization on the Orbitrap Fusion

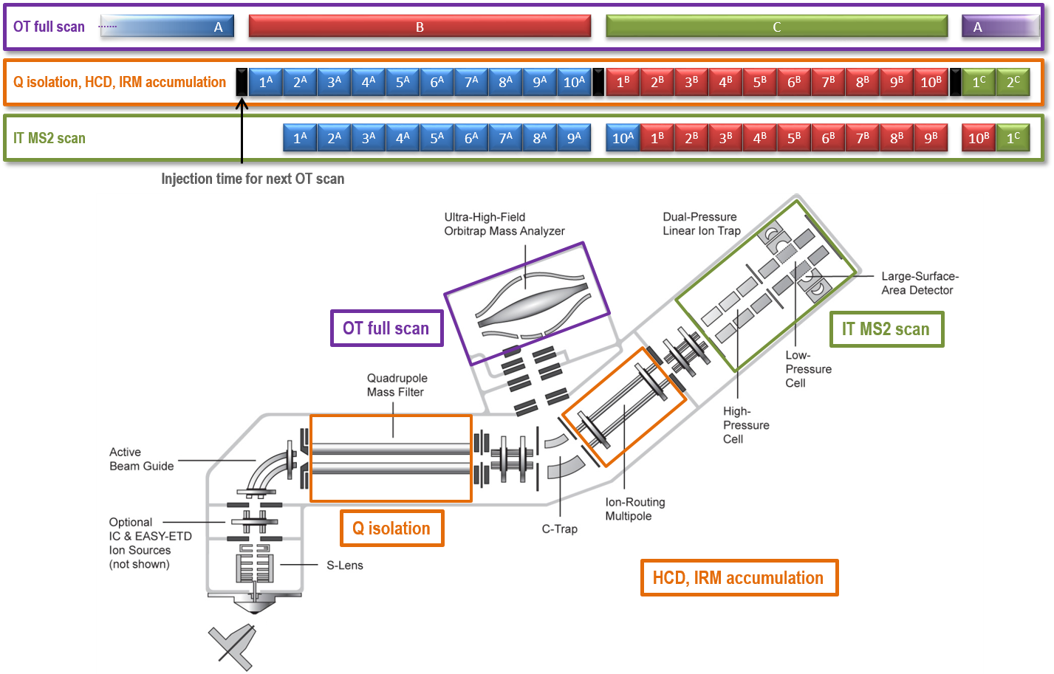

To improve the spectral acquisition rate the acquisition process on the Fusion is extensively parallelized. The figure below shows a schematic of parallel execution and event pipelining: Precursors identified in the Orbitrap full scan (top row) are fragmented and accumulated in the IRM (middle row) concurrent with LT acquisition of the previous MS/MS (bottom row). (The use of parallelizable time was further improved in sw v1.1.)

Senko MW et al. Novel parallelized quadrupole/linear ion trap/Orbitrap tribrid mass spectrometer improving proteome coverage and peptide identification rates. Anal Chem 85(24), 11710 - 4 (2013)

AGC control on Orbitrap Fusion Series Instruments

Automatic gain control (AGC) regulates the number of ions delivered to the Orbitrap and linear ion trap so each scan hits its target ion population. Before each master scan the instrument runs a fast, hidden ion-trap “prescan” (not recorded in the raw file) that measures the incoming ion flux; injection times for the scans that follow are calculated from it.

  • Data-dependent experiments: the prescan uses the master scan’s settings and runs immediately before it. Precursor identities (m/z and charge) come from the previous master scan, but the injection times for the dependent MS/MS scans are calculated from the prescan intensities.
  • Targeted experiments: the prescan covers the m/z range from the smallest to the largest target. Because analyte intensity changes rapidly as compounds elute, a long target list can leave too much time between the prescan and the later targeted scans, degrading the accuracy of the calculated injection times. The Loop Control setting addresses this: with Loop Control set to Time, a fresh prescan runs at least as often as the chosen interval, keeping injection times (and data quality) accurate.

Resolving Power and Transient Length

Here is a full table of the available resolution settings. Note: higher resolution does not always result in better mass accuracy. The higher the resolution increases your ability to distinguish between m/z ions. As you can see in this table, there is always a trade of higher resolution with time. 15k is the lowest resolution setting, with the fastest scan speed of ~15 Hz. On the Fusion, the highest resolution setting is 450K that is <1 Hz.
To fully take advantage of the parallel fill and detect capabilities of the Fusion, we need to balance the max fill times with the transient length. For resolving power 30,000, detection time is about 64 ms. There is always a small amount of inter-scan delay. Up to 54 ms can be used to fill the C-trap with ions- and without increasing cycle time.
In SW version 2.1 50k resolution OT scans for TMT 10plex experiments shows a ~10% improvement over 60k resolution. We successfully used 30k resolution as well.

Res. at m/z 200 Transient length [ms] Approx. scan speed [Hz] “Free” ion time [ms]
15,000 32 na 22
30,000 64 15 54
50,000 96 na 86
60,000 128 7.5 118
120,000 256 4 246
240,000 512 2 502
450,000 1024 <1 1014
